Some recent paintwork resto details

Brazo

New member
A rather badly swirled yellow lotus came to see me today. In harsh sunlight the car failed the 5 foot test miserably, despite its light colour the swirls were horrific as can be seen in the first two pictures. Note also the two same shots taken afterwards.



First up the wheels and arches were cleaned. Wheels took almost half a bottle of wonder wheels and afterwards were waxed with megs cleaner paste wax. The tyres were dressed with megs endurance gel and the arches degreased with castrol greentec and then dressed with ag vinyl and rubber dressing.



Next the roof was cleaned with ag soft top cleaner and once dry sprayed liberally with 303 aerospace protestant.





Glass was taken care of with ag glass polish and the plastics with plast-x.



The car was cleaned first with a triple strength non descript cheap shampoo and clayed at the same time. Surprising claying was very easy and bar the lower panels little was picked up. AG tar remover was needed on lower panels and finally the car was ready for polishing.



Poorboys SSR2.5 was only tickling the swirls so I stepped up to ssr3 on a 4 inch pc pad and afterwards removed the haze with ssr2.5. Lake country cutting pads were used. I had to work in direct sunlight because the lotus was too low for my drive so the polish was drying very fast.



The paint is 9 years old and had a lot of deep random isolated scratches that the pc wasn't going to remove.



I chose megs #21 by hand to finish.

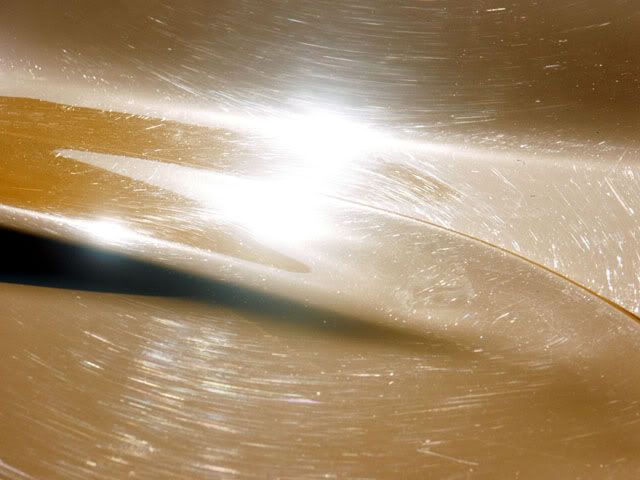

Paintwork Before













Same shots afterwards










Secondly a red Vauxhall Corsa



Here is what the car looked like before I started, it had moderate to badly oxidised single stage paint all over. (I now have 12 pc pads soaking to get the red paint out!)















First off I hit the bonnet and the roof with Klasse AIO to remove the worst of the oxidation. BTW I didn't clean the car first as it just didn't appear dirty, I feel after a while cars stop collecting dirt, loose dirt that it as there was plenty of bonded contaminants.







Next I clayed the whole car using a whole sonus 100g clay bar and also needed to use 1/2 a bottle of AG tar remover!! To put it into perspective polishing and waxing took 3 hours, cleaning the paint took 5 hours!



After reading a few posts on autopia I tried this thing on the badly oxidised surfaces, leaving them to 'soak' with an oil rich glaze to replenish lost oils deep into the paint. I gave it a go with megs #81.







Process was AIO, clay, #83, srp and mezerna FMJ (with UV blocker) on horizontal surfaces and poorboys ssr 2.5, megs #80 and #26 yellow wax on vertical surfaces. The very bottom panels did get collinite though for durability. The waxes were applied thinly using the meguiars cordless orbital and a 4 inch waxing pad. On and off like butter!



Glass was polished with ag glass polish and trim soaked twice in #38. tyres megs endurance 'topped' with ag vinyl and rubber spray. Arches castrol Greentec and ag vinyl and rubber spray.

Shame the sun wasn't out for the afters but here goes!



















Also a couple of split shots first with algae in the pic and the second with pain transfer on the wing mirror.








Absolutely brilliant. That soak technique, technically should work but did you work it in or just spread over?



I think the corsa wins it for me, both excellent contenders for xtreme detailing.



Brilliant effort and the results are staggering, well done.

Great work Brazo! Can I ask what technique you used on the plastic wheelarch trim of the Corsa? I'm due to do my father's Corsa when he goes away in a few weeks and his arches have been similarly bleached by the sun. Did you just smother on the #38?

Very nice. The Corsa before and after and incredible and I love the dual pics. The Lotus owner must have been very happy with those results :up

^^Oh yes a big thanks to pugoman for the loan of the ssr 3 and 2.5 and er no mate theres none left lol!! I do have some on order for you now though!!!!
