JDM 92' Mercedes 400E - Super neglected and swirly! (Lots of pics)

metal

New member
On the slate was this cool car today, had a TV built into the dash! As it seems with most imported Japanese cars, this one was pretty bad on the exterior. Spent a while on this one today, and M105 was really trying to anger me all day. It would practically bake itself onto the paint uber fast, and was impossible to remove almost. Did the job though, but this paint was definitely hard, most areas took M105 on a wool pad via rotary x2 to clear up most of the marring. A few RIDS and some scratches were left after, but its a noticeable difference from before. I spent about 1-2 hours on the interior, and about 6 hours actually polishing, plus other various activites (wash/clay, removing decals, etc) that put me at a total of 10-11 hours I believe.



Onto the pics!



Befores



Here we have our bird bombed subject





Two of a few decals that I had to remove as well.

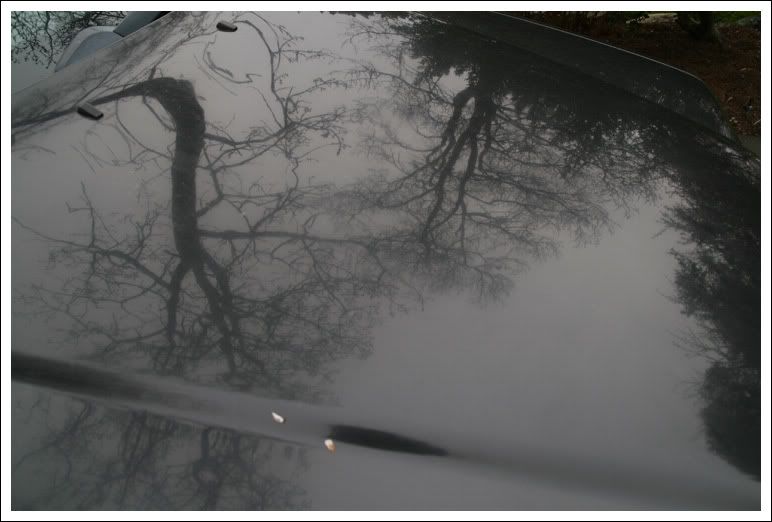

No clarity or gloss in this paint at all.









After the wash, the sun decided to poke out for a bit, so I grabbed some shots of the paint in the sunlight after claying.

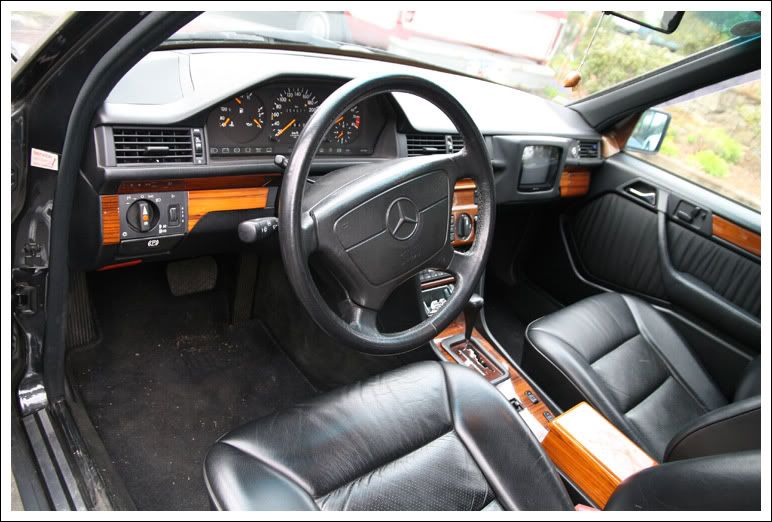

A few shots of the interior, it wasn't that bad in shape, but the leather needed some cleaning and conditioning for sure.

















Trunk had some staining.





For the interior, it got a full vacuum, wiped down plastics + vinyls with 10:1 cut APC, and dressed plastics + vinyls with 303. Q-tips and a thin boarshair brush were used to get into the vents and other small areas. Carpets were cleaned with Folex and extracted with water and my shop vac. Leather was cleaned with a 10:1 water/Woolite mixture, then conditioned with Lexol conditioner.



Mats before





Afters

Mats extracted





Trunk cleaned and extracted

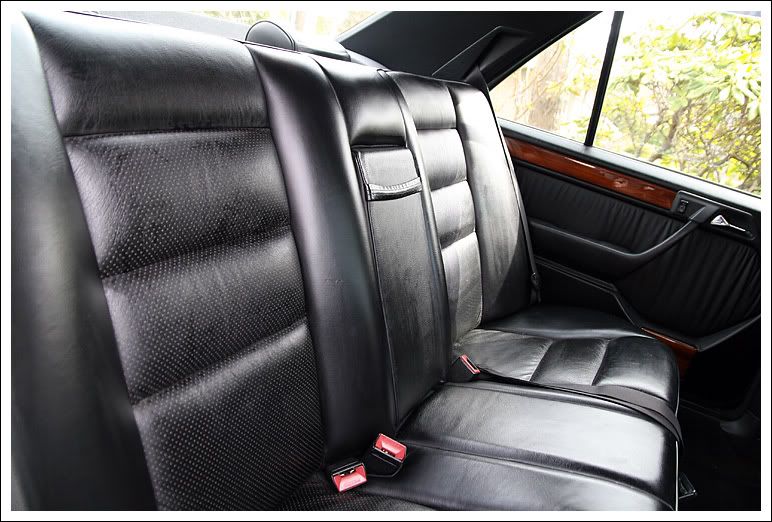

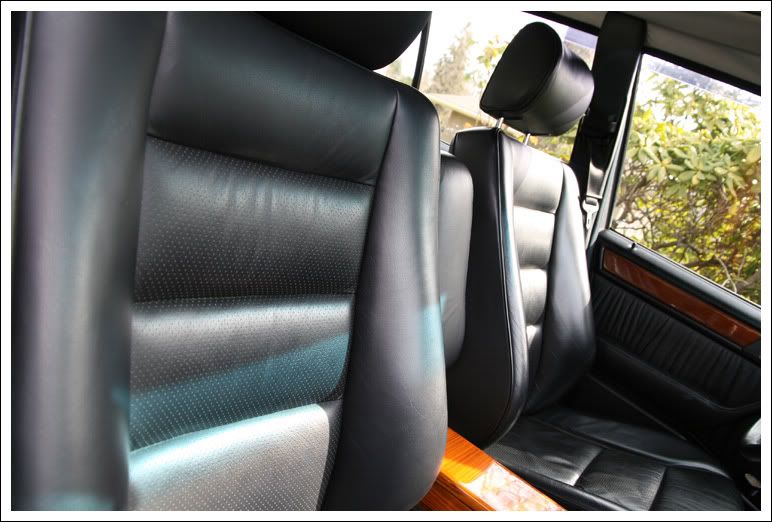

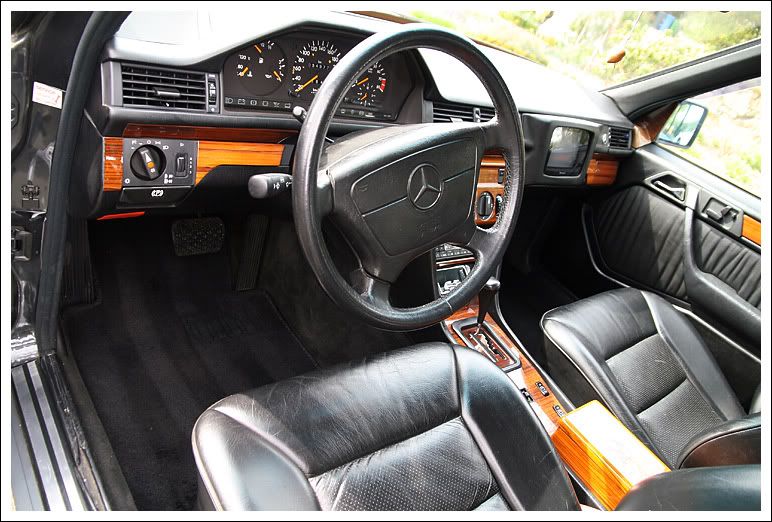

Interior afters

























Alright lets move onto the exterior

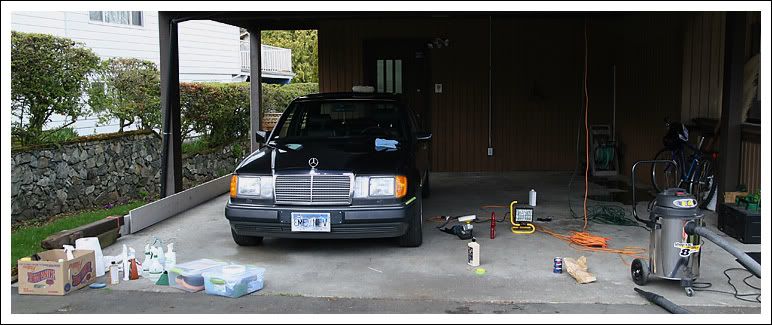

The work space for today.





I tried Optimum Compound on a orange LC pad to start and it wasn't doing much, so I stepped it up to the wool + M105 via rotary. Most of the car required two passes of M105 to clear all of the marring. Followed up with Optimum Polish on a white LC pad via rotary to clean up the holograms and micromarring from the wool. Rewashed the vehicle to get rid of all polishing dust and oils. Finished off by sealing the car with KSG, and S100 on top of that.



All the dusting from M105.......





Left portion of the hood is after M105 + wool, middle and other side are untouched. Noticeable haze.





Final polishing with OP on a white LC pad.

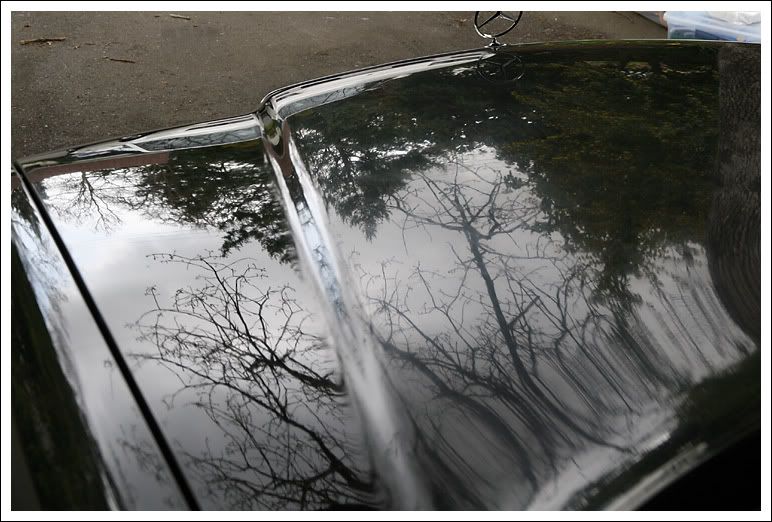

And the completed paint













Wheels got KSG as well, plastic trim got 303, exterior metal trim was hand polished with E1 Nano Metal Polish and glass was cleaned with Stoners IG.

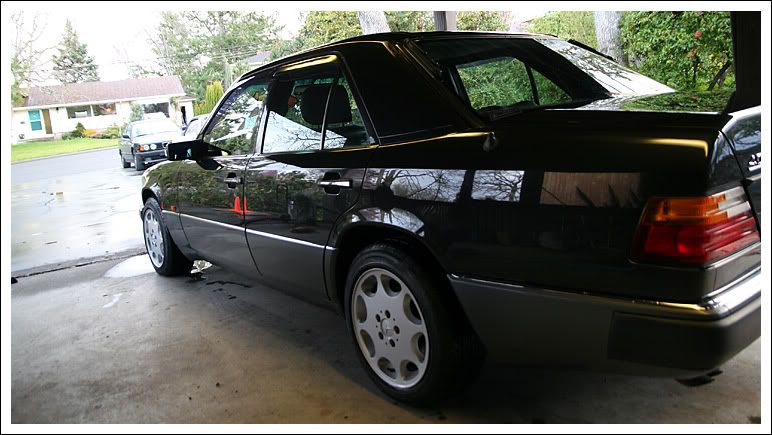

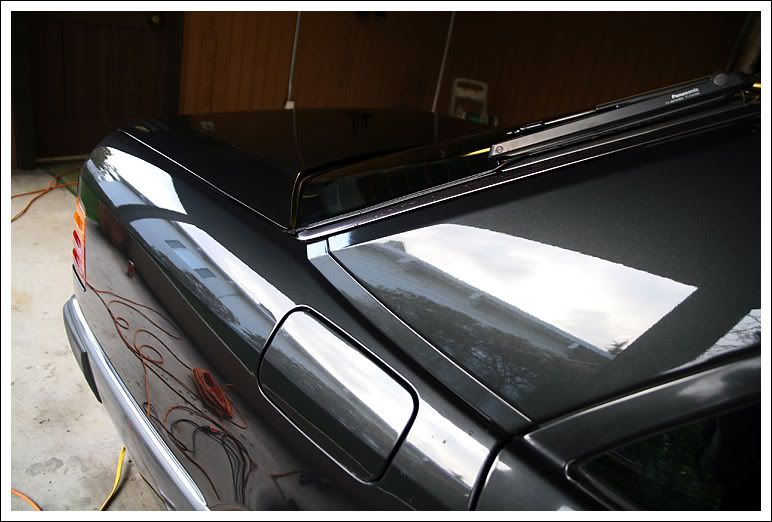

Super reflective and wet














Shot of the removed decals











And there you have it, hope I didn't kill your browser! Anyone else experienced this "baking" issue with M105?

Ooooh.......a W124 Benz.....the pinnacle of Merc's engineers.:2thumbs:



Great work on bringing back the sexy. :bow

Thanks, wheels just got washed, then a cut degreaser and agitated a bit with a light scouring brush.

I really don't enjoy working on those imported vehicles. They're always in terrible shape. Also, most heavy compounds will start to "bake" or cake up on your pad after a pass. Cleaning every pass seems necessary.

Original W124 and W126 paint is amazing. Doesn't look like a 22 year old body style with a 16 year old paint. Well done:goodjob You should come and do mine :)



Love the stealthy TV antennae.

Great work. I have a 1990 300 E in that same color, except unfortunatley the previous owner was a huge ******* he had an accident and got it fixed really cheap so the two passenger side doors are unmatching colors and are filled with orange peel.

Great work! You have bought that one back to life and added some class and quality to the looks.



Of course Japan drives on the left with the steering wheel on right as in the British way. So this car has come from a another country (imported in to Japan) then export again to the USA!!



Weird!



Geoff

Setec Astronomy said:
Nice job! What was that one decal...that the car doesn't have to be inspected until November, 2017??



Not sure, but they're all decals from when the car was in Japan, so it doesnt matter haha.



steelwind101 said:
Great work! You have bought that one back to life and added some class and quality to the looks.



Of course Japan drives on the left with the steering wheel on right as in the British way. So this car has come from a another country (imported in to Japan) then export again to the USA!!



Weird!



Geoff



All BMW's/Porsches etc that I've looked at in Japan are all LHD, I'm just assuming that when they were originally produced, they were all produced in Europe then shipped over to Japan for sale.

Nice work as it was a mess.



If M105 is "baking" on the paint for you, it could be a few things:



1. Not sure of your process, but try picking up the product with your slow spinning wool pad instead of applying the product to the pad.



2. Use less and work it quick. As you noted M105 has a very quick work time. I am talking about 15 seconds at 1500-1700rpm over a 2'x2' area.



3. Never apply any pressure.

I dont know if anyone asked yet but I was wondering what kind of camera are you using? It looks like a Nikon.



And what type of lens too? Thanks! Awesome job
